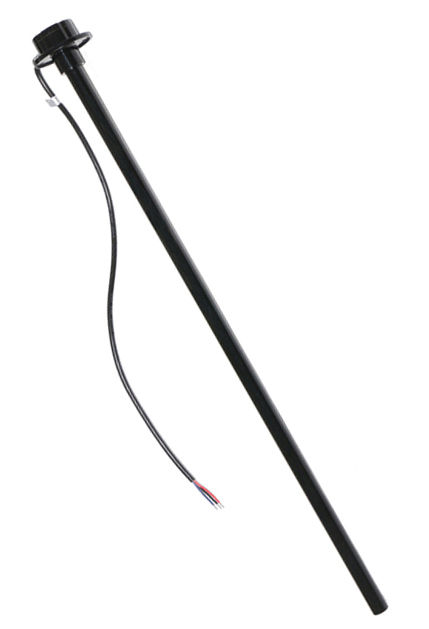

TS-C11 CLS2 Fuel Level Sensor

Adoption of measurement principle of high precision capacitance and application of power processing technology of industrial auto electronics, new series fuel sensor sovled problem of measuring fuel level change precisely in severe environment. which can not only be cut at spot, but also replace the origina l fuel detection unit, Especially with adoption of patented installation technology,which enable simple,reliable and convenient assembly.

  • TS-C11 CLS2 Fuel Level Sensor

    Features:

    1. High accuracy
    2. Easy to install
    3. Can be cut off to fit the length of the oil tank
    4. Easy to calibrate
    5. Long duration



    TS-C11 CLS2 Fuel level sensor is used for fleet managment and fuel level monitoring solution.



    This solution provides a high-precision measurement of fuel level in a fuel tank, gives detailed informaiton about fuel tank refueling, draining, consumption, prevents fraud or unauthorized use of fuel.



    Unique features:

    Adoption of the measurement principle of high precision capacitance and application of power processing technology of industrial auto electronics, new series fuel sensor sovled problem of measuring fuel level change precisely in severe environment. which can not only be cut at the spot, but also replace the original fuel detection unit, Especially with the adoption of patented installation technology, which enables simple, reliable and convenient assembly.



    Specifications:

    Examination range: 100~1000mm

    Resolution ratio: 0.1%

    Measuring accuracy: 0.1%

    Maximal error of measurement: 1mm

    Heat-resistant:-40~150

    Diameter Φ18mm

    Output signal: 4~20mA, 0~5V, RS485, RS232, CAN bus

    Voltage supply: DC7~42V

    Rated supply: 0.1W

    Fixed type: Screw installation M20X1.5 or Flange mounting

    Pressure range:-0.1MPa ~ 0.1 MPa

    Ambient temperature -40~85℃



    TS-C11 CLS2 fuel level sensor can be used cooperatively with our professional vehicle GPS trackers like TS-V1TS-V7, TS-V9 or Speed Limiter or other terminals to make vehicle positioning and fuel consumption management system. It can evaluate the usage of the vehicle driver's driving level with monitoring gas up situation of the vehicle, precise calculating fuel consumption per hundred kilometers and completely eradicating the possibility of oil stolen, oil spilling, or detouring, to make extra money saved.
